ThinkTop® V70
The compact Alfa Laval ThinkTop V70 is the second-generation of the leading sensing and control units for hygienic valves. It can be fitted with up to three solenoid valves and ensures unmatched control of all Alfa Laval valves used in the dairy, food, beverage, brewery and pharmaceutical industries.
Intuitive, intelligent hygienic valve control
- Fast, intuitive setup takes place in seconds
- Smart control with 24/7 self-diagnostics
- 360° LED visual status indication, visible from any direction
- Built-to-last: IP69K rating and vibration proof
- Fastest ever burst seat cleaning reduces water consumption by up to 90%
Maintain your peace of mind and control your hygienic valves effortlessly with the Alfa Laval ThinkTop V70 valve control units. Enjoy minimalist aesthetic housing made of composite material with a single sensor target control board to handle all valve functions and communication. No adapters, special tools or cover screws required. Non-crossing, colour-coded air hoses ensure straightforward connections.
How it works
The Alfa Laval ThinkTop V70 valve control units offer a single-sensor solution for butterfly, single-seat and mixproof valves; a single control unit can be fitted with up to three solenoid valves. ThinkTop valve control unit converts the electrical PLC output signals into mechanical energy to energize or de-energize the air-operated valve, using the physical sensor target mounted on the valve stem.
Installation with auto setup is intuitive and fast. To initiate auto setup, simply press the “Select” button and then the “Enter” button to begin the setup sequence. The process is completed in accordance with the number of solenoid valves fitted to the control unit. Alternatively, the ThinkTop valve control unit can be set up without dismantling the control head using the built-in “Live setup” feature for remote configuration.
Download IO-Link documents
IO-Link data parameter and IO-Link PLC connection
Close at hand katalog
Alfa Lavals produktkatalog for hygienisk utstyr "Close at hand" inkluderer produkthefter, lenker til animasjoner, brosjyrer og lister for bestilling.
CAD-portal
Alfa Laval CAD-portalen er en viktig plattform for nedlasting av detaljert produktinformasjon, 2D-tegninger og 3D-produktmodeller.
Service
Det dedikerte globale servicenettverket vårt hjelper deg med deler og ekspertise uansett hvor du er og når du trenger det. Dermed får du bedre oppetid, tilgjengelighet og optimalisering, slik at du slipper å bekymre deg og kan maksimere avkastningen. Vi kan samarbeide med deg om å integrere tjenestene våre i en Alfa Laval tjenesteavtale, slik at du får forutsigbar og bekymringsfri drift.
Lær mer om tilbudet vårt Feilsøking
Ta kontakt med oss hvis du har spørsmål.
Alfa Laval ThinkTop®. Rethought.
Intuitivt og rask |
Smart og tilpasningsdyktig |
Holdbar og pålitelig |
Estetisk design |
Follow the water
"To save energy in food production, you should follow the water," says Allan Bruun, manager for optimization at Alfa Laval. "Water is where you find high energy consumption for pumping, heating, and water treatment – and where you have many opportunities to save energy."
Listen to Allan Bruun’s advice.
Pulse seat clean: cut CIP liquid consumption on drain valve cleaning by up to 95%
Drain valves comprise 20% of all valves in typical process plants. Imagine the water savings you can realize by adding the Alfa Laval ThinkTop pulse seat clean to your drain valve cleaning process.
In less than a second, an intensive jet of CIP liquid pulses through the gap between the valve house and valve seat, creating high turbulent flow and leaving the valve spotless. The result? Quick and effective cleaning, more uptime, and increased end-product yields.
Burst seat clean: sustainable water savings for mixproof valve cleaning systems
Save up to 90% of the Cleaning-in-Place (CIP) liquid used for mixproof valve cleaning with the Alfa Laval ThinkTop burst seat clean. Unlike conventional PLC timer-based seat lift cleaning, burst seat cleaning uses minimal water and cleaning media. In less than a second, high-impact bursts of CIP liquid effectively clean your mixproof valves, removing all residuals from seat surfaces and safeguarding process hygiene.
Easy-to-access digital service and support
Access the service instruction manual and videos online or get the direct support you need using a convenient QR code located on the Alfa Laval ThinkTop housing.

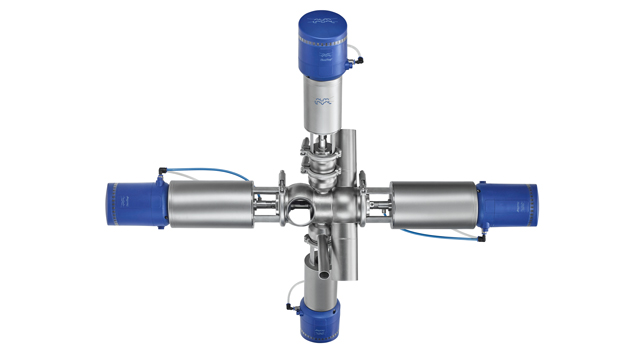

The V-series fits all Alfa Laval hygienic valves. Select the right Alfa Laval ThinkTop valve control unit for your hygienic process needs based on the number of solenoid valves required. The ThinkTop V70 series fits on top of all of these valves plus the Alfa Laval double seat valves and special valves.
Utnytt kraften fra IO-Link
Forlang mer fra ventilene dine med Alfa Laval ThinkTop IO-Link. ThinkTop IO-Link forbedrer kommunikasjonen mellom de hygieniske ventilene og automatiseringssystemene i Industri 4.0. Punkt-til-punkt-kommunikasjonsprotokollen i IO-Link kobler sammen sensorer og aktuatorer, uansett feltbuss, til automatiseringssystemene dine. Dette gjør det lettere å registrere lagre, analysere og reagere på meningsfulle sanntidsdata.
- Forbedret fleksibilitet lar deg endre dataparametere og behandle data fra et eksternt automatiseringssystem
- Mer oppetid og mindre kostnader på grunn av dataovervåking og diagnostikk 24/7
- Omfattende oversikt over data med forebyggende vedlikehold i rett tid samt optimalisert ytelse
- Tydelig synlige LED-er med tilpassbare farger og en "blink"-funksjon som gjør det lettere å finne en ventil fra fabrikkgulvet
- Større besparelser på vann og avløp
Find the products you are looking for
The digital Alfa Laval Product Catalogue makes it easy to find and select the products you need. When you request a quote, the catalogue will list Alfa Laval’s partners in your region – and you can send your request directly.
En del av et bredt utvalg av sensorer og kontroller
Alfa Laval tilbyr et omfattende utvalg av sensorer og kontroller beregnet for hygieniske bruksområder innenfor meieri, mat, drikke,hjemmepleie, personlig pleie, bioteknologi og farmasi.
Oppdag en ny generasjon ThinkTop®
Vil du lære hvordan de grensesprengende Alfa Laval ThinkTop V50 og V70 kan forbedre produksjonen i de hygieniske prosesslinjene? Raskere og mer intuitiv. Smart og tilpasningsdyktig Holdbar og pålitelig Mer kompakt, men med et svært funksjonelt design. Alfa Laval ThinkTop. I ny konstruksjon.
Reduser CIP-kostnadene med 90% med en optimalisert rengjøringsprosess
Er du interessert i å redusere forbruket av CIP-væsker? I denne artikkelen vil du lære mer om hvordan du kan oppnå betydelige vannbesparelser under rengjøring av ventilen - uten at det går ut over produktets hygienekapasitet og sikkerhet.
