PlusClean®
Let the Alfa Laval PlusClean® cleaning device tank washing nozzles revolutionize tank cleaning in your hygienic processes. Paired with your top-mounted tank cleaning device, the PlusClean® smoothly integrates into the tank wall or bottom. When activated during Cleaning-in-Place (CIP), it hits shadow areas with a fan of pressurized cleaning media, guaranteeing 100% impact cleaning coverage, up to 80% savings in water and cleaning agent costs, and 0% contaminants.
Boost product yield higher with unprecedented 100% tank cleaning coverage
- Get 100% impact cleaning coverage
- Up to 80% reduction in water and cleaning media consumption
- Eliminate product contamination risks and raise product yield
- Meet the highest hygienic requirements
- Low total cost of ownership due to very low maintenance requirements and reduced water, cleaning media and wastewater costs
Thorough tank cleaning eliminates the risk of contamination which can affect the productivity of your hygienic processes. Using the easy-to-install Alfa Laval PlusClean® cleaning device effectively does away with virtually all contamination risks in your process tanks. With its optimized, high-impact spray pattern, the PlusClean® delivers 100% cleaning coverage in shadow areas, such as beneath agitator blades, coils and connections, that top-mounted tank cleaning devices miss. Faster, safer contaminant-free changeovers are now possible, boosting batch or continuous process productivity in the food, beverage and personal care industries. This increases product yield and speeds return on investment while lowering total cost of ownership.
How does the Plus Clean work
The Alfa Laval PlusClean® cleaning device is installed flush with the tank wall and/or tank bottom. Activated either by the cleaning media or by controlled air pressure, the device creates a high impact force spraying cleaning media in a fan pattern directly onto the soiled area. Cleaning coverage is ensured through controlled and repeated rotation of the shaft and agitator blades.
Upon completion of the cleaning cycle, the integrated spring mechanism restores the piston to its original position, securely closing and sealing off the cleaning device. If purging is required, always operate with the actuator.
Extremely versatile

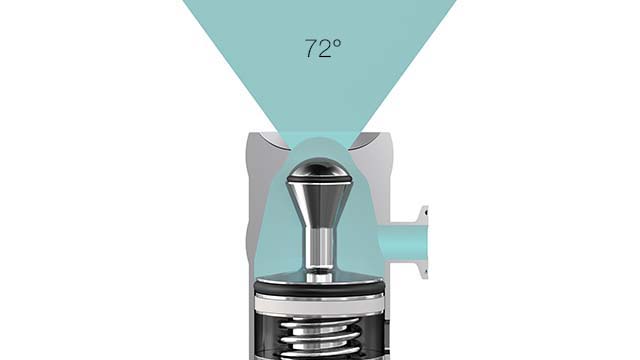

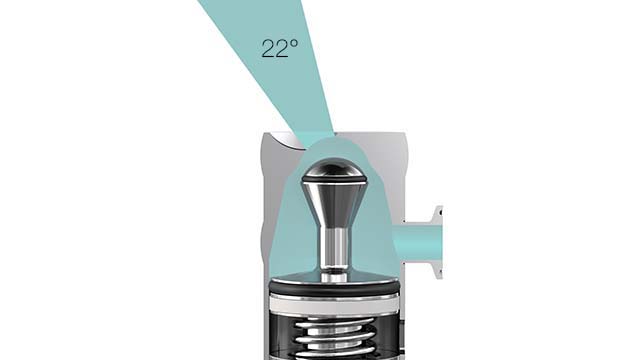

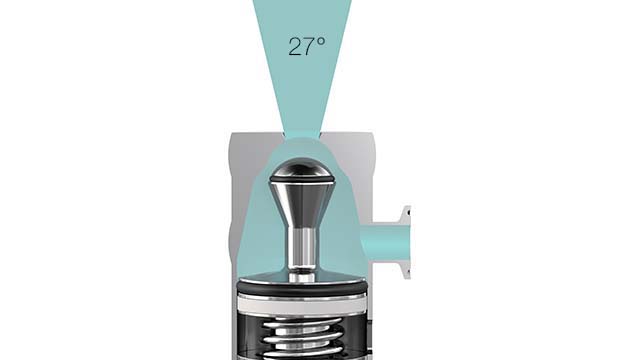

The PlusClean® optimizes the cleaning efficiency of the primary cleaning device, regardless of whether a static spray ball, rotary spray head or a rotary jet head with a CIP nozzle. Depending on the overall design of your tank, you can configure the cleaning device either in the tank wall or on the tank bottom. Choose one of three different spray patterns and one of two different weld plates for mounting to customize your cleaning device to your requirements.
Special product line
In addition to the standard Alfa Laval PlusClean® with a piston activated by the cleaning media, a special pneumatic version is available. The pneumatic version activates the piston using controlled air pressure. When used together with the Alfa Laval ThinkTop, you have a full overview of your tank cleaning process, including feedback signals such as open/closed and purging option.
Service
Count on extended equipment performance and more uptime due to low-wear components that are easy to replace on site, minimizing downtime. The PlusClean® cleaning device has no moving parts that extend into or retract from the tank. Durable, reliable genuine parts from Alfa Laval deliver outstanding performance, lower your total cost of ownership and preserve the value of your equipment throughout its entire life cycle.
Close at hand katalog
Alfa Lavals produktkatalog for hygienisk utstyr "Close at hand" inkluderer produkthefter, lenker til animasjoner, brosjyrer og lister for bestilling.
CAD-portal
Alfa Laval CAD-portalen er en viktig plattform for nedlasting av detaljert produktinformasjon, 2D-tegninger og 3D-produktmodeller.
Service
Det dedikerte globale servicenettverket vårt hjelper deg med deler og ekspertise uansett hvor du er og når du trenger det. Dermed får du bedre oppetid, tilgjengelighet og optimalisering, slik at du slipper å bekymre deg og kan maksimere avkastningen. Vi kan samarbeide med deg om å integrere tjenestene våre i en Alfa Laval tjenesteavtale, slik at du får forutsigbar og bekymringsfri drift.
Lær mer om tilbudet vårt Feilsøking
Ta kontakt med oss hvis du har spørsmål.
Optimize™ fra Alfa Laval
Optimize™ fra Alfa Laval forbedrer dine eksisterende prosesser og muliggjør opptil 90 % besparelser på vann, energi og kjemikalier med bare små og risikofrie investeringer.
Besøk applikasjons- og innovasjonssenteret
Ønsker du å identifisere det optimale utstyret for jobben og oppdage konkrete besparelser før du bestemmer deg for oppgraderinger? I Alfa Lavals applikasjons og innovasjonssenter kan du gjøre nettopp det.
Happy Customers
Safeguard cheese production with 100% cleaning coverage of tank shadow areas
To increase cheese production by expanding its milk reception, a large Scandinavian dairy turned to the Beritech Group, an experienced tank and system builder. The objective was to guarantee complete cleaning coverage for two new 30-metre-high raw milk silos with bottom-mounted agitators.
360° Service and maintenance videos

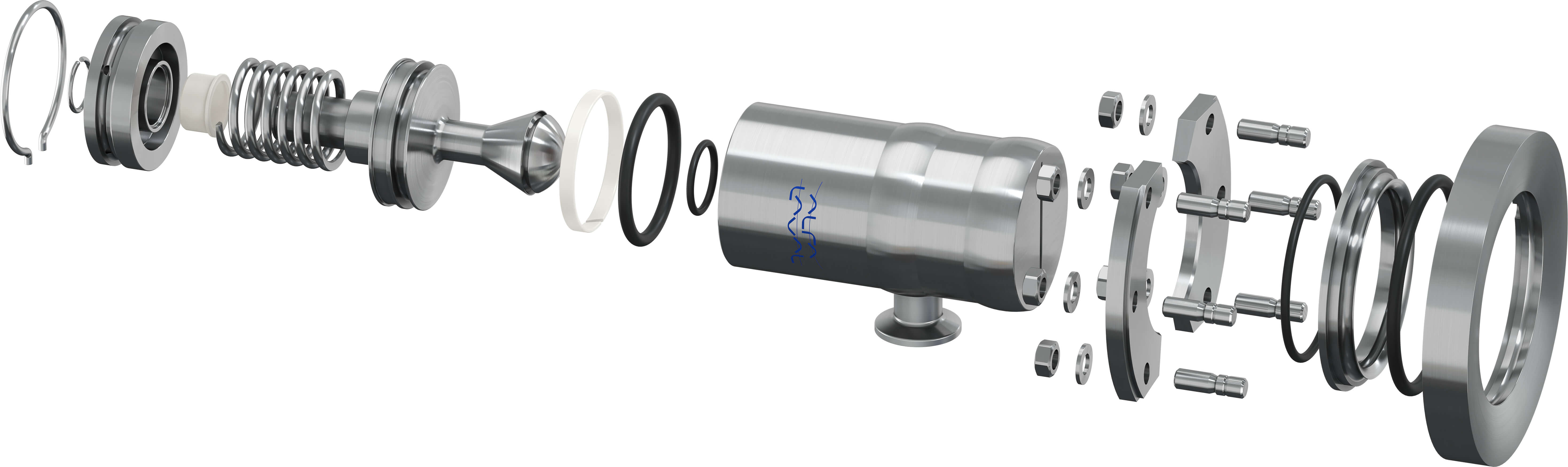

How to assemble the Alfa Laval PlusClean®
How to disassemble the Alfa Laval PlusClean®
