AXP

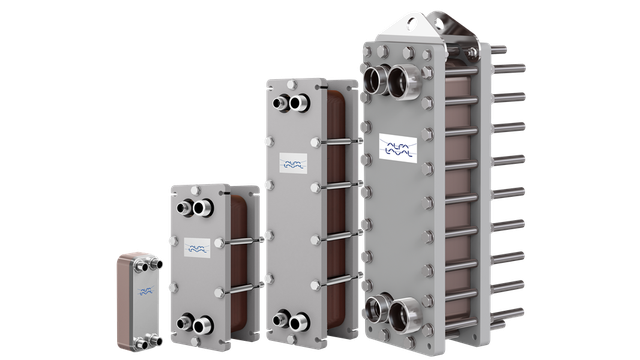

Alfa Laval AXP stands for “extreme pressure,” and that’s exactly what these brazed plate heat exchangers are designed to handle. Specifically engineered for subcritical and transcritical applications using CO2 (R744) as a refrigerant, the AXP line can also support other fluids that require very high pressures. AXP units are suitable for duties ranging from heat recovery, condensing and sub-cooling to gas cooling, suction gas heating and more.

阿法拉伐AXP钎焊板式换热器

More with AXP

  • Highly resistant to corrosion and extreme pressures
  • Compact design enables simple, cost-effective installationRobust tightening bolts and carbon steel external frames make it possible to withstand mecha
  • Certified to handle pressures up to 167 bar (PED approval) and 2233 psi (UL approval)
  • Also available as an evaporator with an add-on distributor as well as in full stainless steel for ammonia/CO2 cascade systems
  • Small hold-up volume and lower refrigerant charge provide rapid response to temperature changes
Pressure peaks and rapid temperature changes subject heat exchanger materials to physical stress, eventually leading to problems that can cause equipment failure. With extensive experience in thermal transfer technology, Alfa Laval has studied these phenomena in order to produce a resilient brazed plate heat exchanger that can provide a long service life under high operating pressures. The result of this development, our AXP line, has PED-approval for maximum pressures of 167 bar at 90°C and UL-approval for 2233 psi at 400°F. This makes AXP highly suitable for applications using CO2 as a refrigerant, such as hot water heat pumps, supermarket chiller installations and commercial air conditioning systems.

Unique features to boost your performance

With more than 80 years of experience in heat transfer innovation, Alfa Laval knows what it takes to deliver high-performance solutions for any application. Our experts continuously develop new innovations that give our AXP line of brazed plate heat exchangers more reliable and efficient performance.

DynaStatic

Fleksibel kjølemiddeldistribusjon

Dette gjennombruddet av en produksjonsmetode lar deg skreddersy plassering, størrelse og antall innløp for å tilpasse det til dine spesifikke behov, og sikre at du får det optimale kjølemiddeldistribusjonssystemet for produktene dine. Resultatet er høyere effektivitet kombinert med fleksibiliteten til å bruke lav-GWP-kjølemidler.

PressureSecure icon

PressureSecure

Uovertruffen styrke for krevende oppgaver

Våre innovative platedesign støtter det bredeste spekteret av systemer med høye temperaturer og trykk. Enhetene kan driftes med tynnere plater og færre plater, noe som betyr mindre råvarer, lavere energiforbruk, redusert kjølemiddelvolum og lengre levetid for utstyret.



REF futurure icon

REFuture

En fremtidssikker investering for morgendagens kjølemidler

Som en innovativ spydspiss i utviklingen av løsninger for naturlige kjølemidler, har Alfa Laval mange års erfaring med å jobbe med produkter som gjør det mulig å bruke nye generasjoner kjølemidler og lav-GWP-kjølemidler for å hjelpe deg med å oppfylle bærekraftmål og eventuelle lovkrav.

Finding the right heat exchanger

With expertise from decades of experience in heat exchange, Alfa Laval offers guidance and useful tools to help you meet today’s heating and cooling challenges. Our product guide is an interactive resource you can use to find the ideal solution for your application.

AL HC640x360

Flere muligheter for transkritiske CO2-oppgaver

Den nye Alfa Laval AXP82 kombinerer utmerket mekanisk ytelse og lavt trykkfall i en rammeløs varmeveksler som er optimert til bruk med CO2. Med AXP82 kan du nå bruke samme modell til et bredt kW-område av transkritiske oppgaver. En ny kanalplate med patenterte funksjoner forbedrer mekanisk og termisk utmattelsesmotstand, noe som gir deg overlegen pålitelighet av effektiv varmeoverføring ved krevende trykk- og temperatursykluser.

AXP82 vignette
