CIP Station

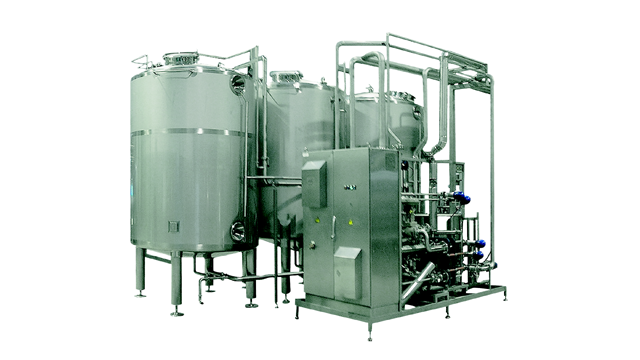

The CIP station is a modularised skid-mounted plug-in unit for automated cleaning-in-place of brewery process installations, including process piping, tanks, filling machines and heat exchangers, among other systems. The cleaning regime is fully adjustable to that required by the target system in terms of cleaning time, temperature, pressure and flow.

cip清洗系统-cip cleaning system

The cleaning solution is pumped through the specially designed plate heat exchanger, where it is heated to the required temperature. It is then routed to the target system to be cleaned and back to the circulation tank included in the CIP module.

After each cleaning phase the cleaning solution is routed to drain or back to the detergent tank for later re-use.

The system furthermore includes automatic make-up of cleaning solutions. This preparation program can be initiated manually by the operator, automatically at a specified time or after a selected number of cleaning sequences.



Benefits

  • Developed in co-operation with the brewing industry
  • Low losses
  • Automatic control
  • Sanitary design
  • Robust construction
  • Compact design
  • Versatile and adaptable to different process requirements
  • Low maintenance
